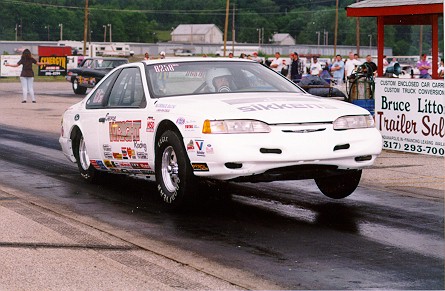

1995 Thunderbird - Open Comp or FGT/J

Best Quarter Mile ET: 10.57 seconds

• 4130 chromemoly roll cage - 1 5/8" x .083
• 5.0 Liter Coyote Engine
• Custom step headers built with components from American Racing Headers
• C4 Transmission built by Joel's on Joy
• Trans Brake
• 4500 RPM stall convertor
• Turbo Action Shifter
• OEM EFI / ECU calibrated using SCT calibration software
• Removeable driveshaft loop
• Narrowed nine inch Ford rear end
• Rear end housing has back brace and lower four-link brace
• 35 Spline Spool
• Ford N Case Housing with 3.25" caps
• Mark Williams 35 spline axles
• Richmond 5.43 Pro Gear
• Raven Engineering Driveshaft with 1350 U-joints
• Large rear tubs
• 2" x 3" Rectangular tubing rear subframe
• Subframes connected with 2" x 2" square tubing
• Front crossmember reworked and lightened
• Shortened front control arms
• Mid mount tabs
• Four link rear suspension
• Diagonal Link
• Strange Front Coil Over Struts
• Strange Coil Over Shocks
• Wilwood rack and pinion steering
• Wilwood light weight front disc brakes
• Mark Williams light weight rear disc brakes
• Autometer Tachometer with recall
• Autometer Oil Pressure Guage
• Autometer Oil Water Temperature Guage
• Autometer Fuel Pressure Guage
• EFI electric fuel pump
• Taylor overhead switch box
• Custom made wiring harnesses using Ford OEM connectors
• Dual trunk battery mounts
• Safety Power Cut-Off Switch
• Welder style plugin jack for starter power
• Rear taillights for night racing
• Power windows
• Harwood five gallon upright fuel cell
• RJS five point seat harness
• Custom fit RJS window net
• Full Tan colored OEM interior minus rear seat
• Matching Tan colored vinyl roll bar padding covers
• Power drivers seat
• Lightened dash, no air bags, no heater box or ducts
• Weight box mount in rear seat area
• Weight bar mounts over center of rear end
• OEM radiator
• Electric cooling fan
• Harwood Overflow Bottle
• Hurst Line Loc
• Weld Wheels
• Goodyear 26 x 4.5 - 15 Front Tires
• Hoosier 11.5 x 31.0 - 15 Rear Slicks
• Sikkens white urethane paint with gold pearl
• Car weighs 2950 pounds without driver and no weight box or weight bars

Click on any of the pictures below for a enlarged view.

<

In car video from Milan Dragway on July 1, 2016.

---
